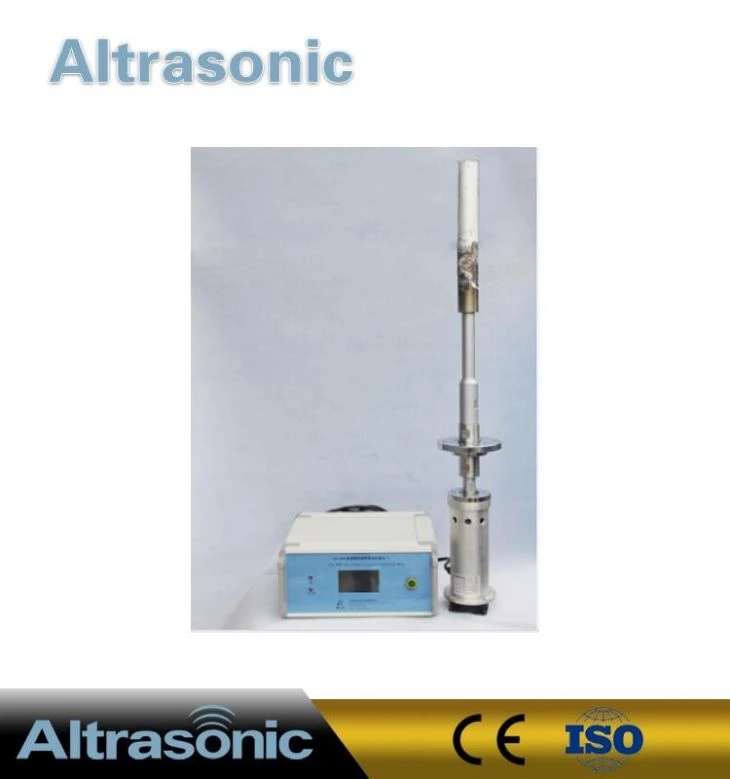

1500W Ultrasonic tshuab rau Cavitation
Luv Lus Qhia Txog
Ultrasonic yog lub suab yoj uas zaus yog 2 × 104 Hz ~ 107 Hz, tshaj cov neeg muaj peev xwm hnov. Thaum ultrasonic kis tau rau hauv nruab nrab cov kua, nws yuav ua rau muaj kev tawm dag zog xws li mechanics, thermotics, optics, hluav taws xob, chemistry thiab lwm yam zoo li, ntawm mechanical, cavitation thiab cua sov feem. Ultrasonic nrog lub hwj huam loj yuav ua rau muaj zog cavitation nyhuv, tsim kev kub siab, siab siab nqus thiab micro dav hlau.
Ua hauj lwm txoj cai ntawm lub hwj chim loj ultrasonic kho mob system
Ultrasonic ua system yog constituted los ntawm ob yam, ultrasonic oscillator thiab ultrasonic generator. Ultrasonic oscillator nrog rau kev siv fais fab ultrasonic transducer, koob thiab horn (kev sojntsuam), nws yog siv los ua ultrasonic kev co, thiab xa lub tshuab zog thiab siab rau cov haujlwm ua haujlwm. Transducer tau hloov high-zaus hluav taws xob lub zog rau tshuab co tshuab zog, uas & rsquo ultrasonic. Transducer ua flexible zog ntev, thiab qhov siab tshaj li ob peb hnub, tiam sis lub zog ntom nti ntawm qhov siab qhov no tsis txaus ua haujlwm. Daws tau nce amplitude, txhim kho tag nrho ultrasonic system. Horn yog txuas nrog lub zog, ultrasonic zog yog nqa los ntawm koob mus rau horn, ces, xa mus rau qhov teeb meem ua hauj lwm.
Cov Khoom Muag Kom Paub Ntxiv:
Lub Npe: | Ultrasonic Extraction | Zaus: | 20Khz |
Lub zog: | 1500W | Nyhav: | 35Kg |
Tswv yim: | Sib Txawv Sib Txawv Zoo | Cov Ntaub Ntawv: | Titanium |
Fais fab tuag: | Cov hom | Hwjchim Kho: | Tau Hloov Los Ntawm 10% Mus Rau 99% |
Amplitude: | Tau Hloov Los Ntawm 10% Mus Rau 99% | Nyob: | Nws pib |
Peev xwm: | 2000ml - 5000 ml |
Specifications:
Qauv | HSS11B-EB | HSS17B-ZB | HSS57B-ZB | HSS59B-ZB | HSS61B-ZB |
Zaus | 40 ± 1 KHz | 20 ± 1 KHz | 20 ± 1 KHz | 20 ± 1 KHz | 20 ± 1 KHz |
Lub zog | 100 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220 ± 10% V | 220 ± 10% V | 220 ± 10% V | 220 ± 10% V | 220 ± 10% V |
Kub | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Siab | Qhov qub | Qhov qub | 35 MPa | 35 MPa | 35 MPa |
Kev siv lub suab | > 10 W / cm² | > 10 W / cm² | > 30 W / cm² | > 40 W / cm² | > 60 W / cm² |
Max peev xwm | > 100M L / Me | > 5 L / Me | > 15 L / Me | > 20 L / Me | > 30 L / Me |
Cov ntaub ntawv ntawm taub hau taub | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Qhov loj ntawm kev ua ultrasonic ua
Generator
Nws yuav hloov lub 50-60Hz lub zog hluav taws xob mus rau high-power hauv high-frequency (15kHz-100kHz) fais fab mov, thiab mam li muab rau lub transducer.
Transducer
Nws tuaj yeem hloov tau hluav taws xob ntau zog rau tshuab hluav taws xob lub zog.
Txiav
Nws siv los txuas thiab txhim kho cov transducer thiab horn. Thaum ntug qhov voj voog, nws yuav nqa mus rau lub horn.
Horn
Nws siv los xa cov tshuab hluav taws xob thiab lub zog rau kev ua haujlwm thiab ua kom muaj zog txaus siab.
Txuas bolt
Txuas ntxiv saum toj.
Daim ntawv thov:
1.As kev cuam tshuam ntawm tes / lub puab tsaig
Kev cuam tshuam ntawm tes yog hluav taws xob ntawm lub transducer yog hloov mus rau lub zog, lub zog no los ntawm cov kua nruab nrab thiab ua ib qho me me npuas, cov me me npuas sai tawg ntho, ua rau tib lub zog ua me me tawg, uas ua si tawg hlwb thiab lwm yam tshuaj.
2. Siv lub tshuab Emulsification
Ultrasonic emulsification hais txog lub zog ultrasonic, yog li ntawd ob (lossis ntau dua) kua dej kom tsim tau ib qho kev sib xyaw ua kom zoo, uas yog ib qho kua dej ua ke hauv lwm cov kua los ua ib qho kev rho tawm ntawm cov txheej txheem.
